1000KN C Frame Hydraulic Press Machine 100T TPC Hydraulic C Type Press

  • 1
  • 2

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Product name : 100T Customized C Frame Hydraulic Press Machine

Force : 100T

Type : C frame

Max pressure of liquid : 25Mpa

Max opening height : 800mm

Application : Metal Forming

Contact Now

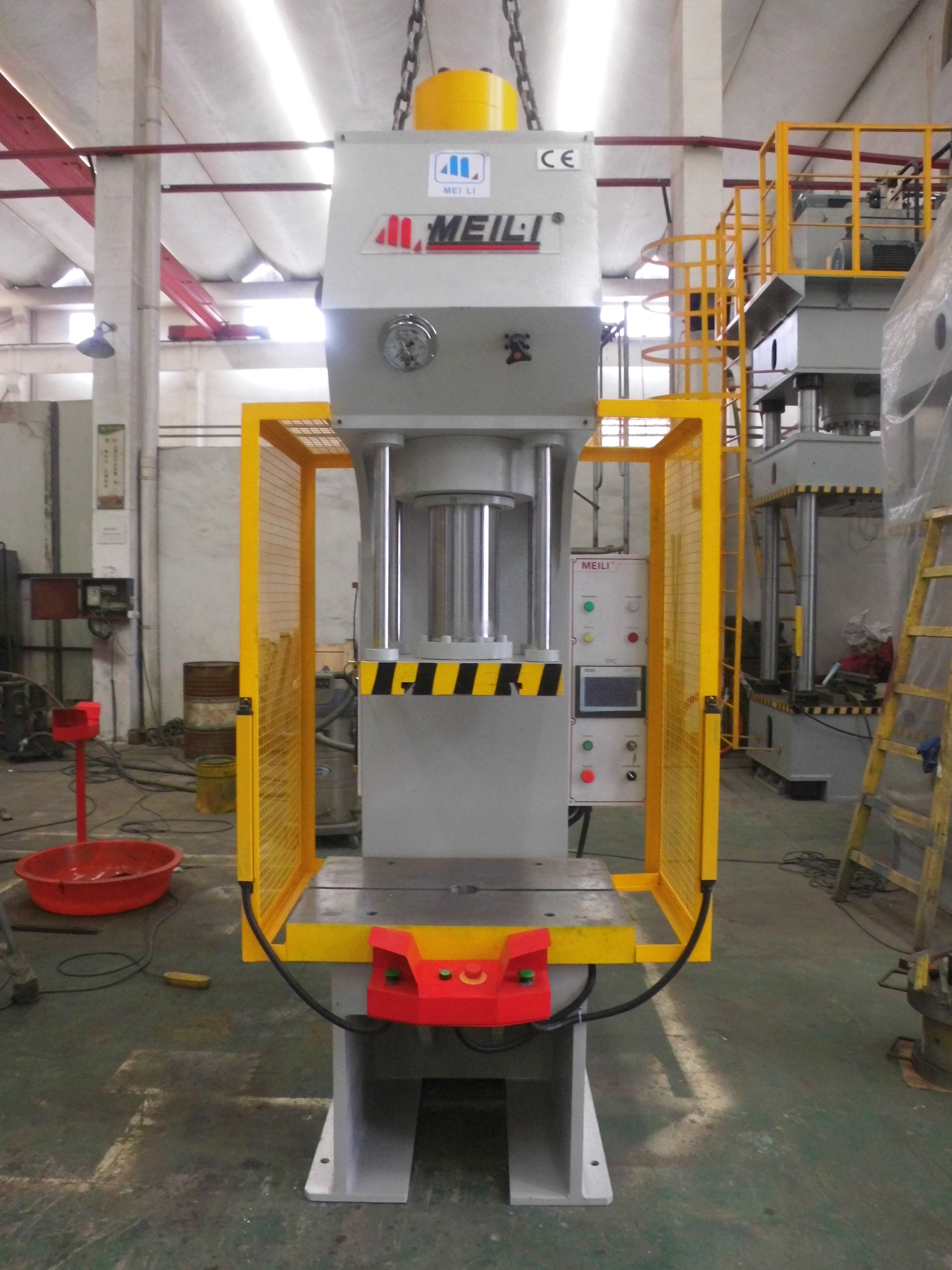

100T Customized C Frame Hydraulic Press Machine.

Our C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame.
In case of die cushion, die cushion cylinder with other system will be provided.
According to the speed of the press, the motor capacity can be changed.
These Throat type presses are compact with high operating speeds.
These require low maintenance & are offer smooth functioning.

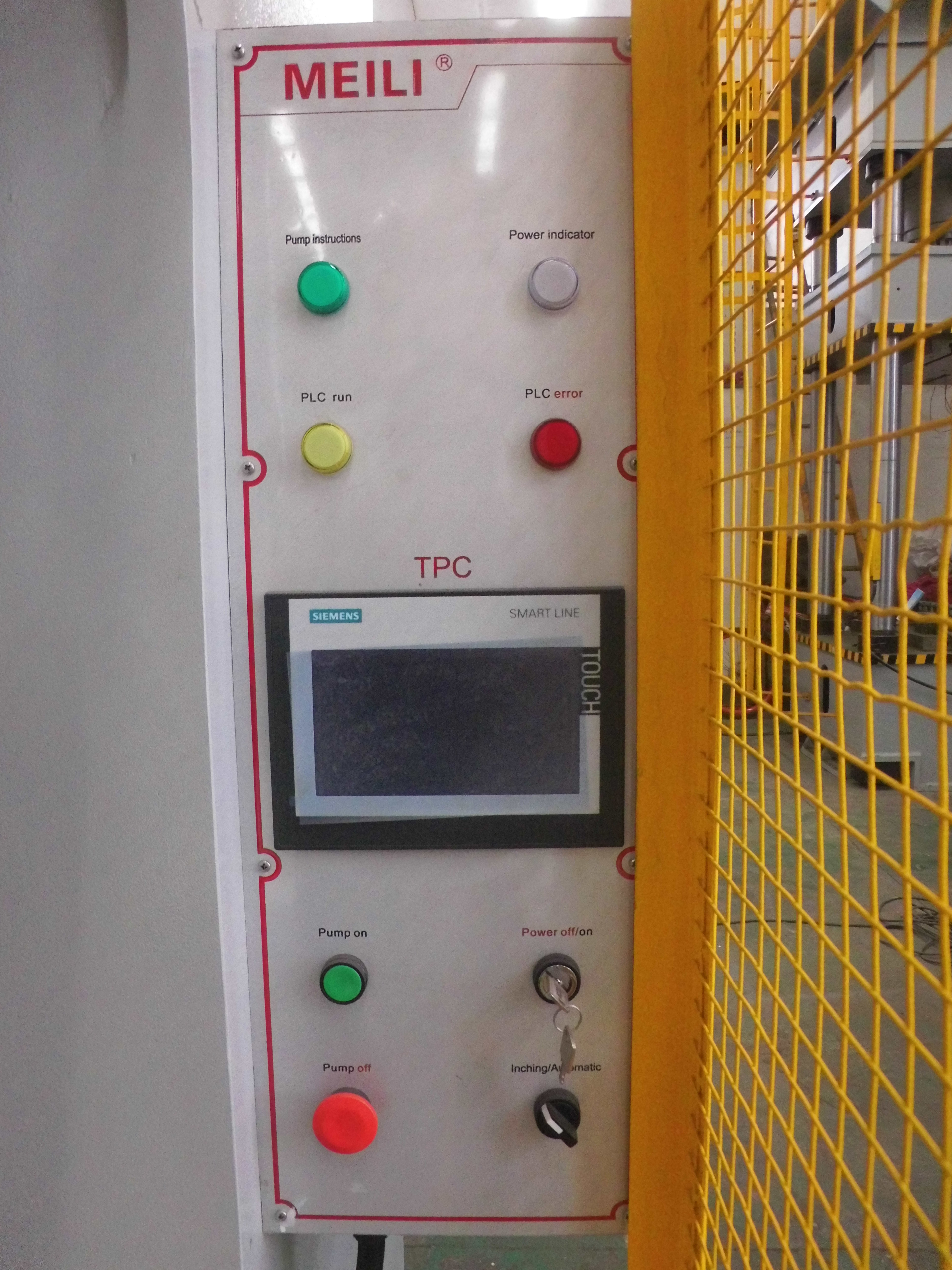

ELECTRICAL CONTROL PANEL
The electric control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate any fault and replace components conveniently.

Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5

Overall size

 L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

1000KN C Frame Hydraulic Press Machine 100T TPC Hydraulic C Type Press

1000KN C Frame Hydraulic Press Machine 100T TPC Hydraulic C Type Press
