1000KN 25Mpa Floor Model C Frame 100T Metalworking Hydraulic Press

  • 1
  • 2

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Product name : 100T Floor Model C Frame Hydraulic Press Machine

Nominal Force : 1000KN

Color : 25Mpa

Voltage : 380V/220V Optional,220V/380V(According to requirement)

Usage : Blanking Punching Deep Draw Work Forming Straightening Assembly

Power source : Hydraulic

Contact Now

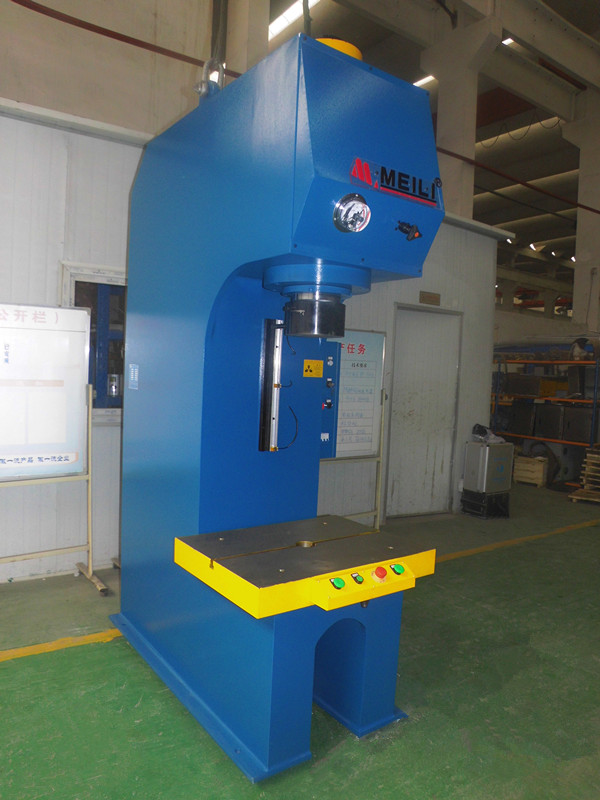

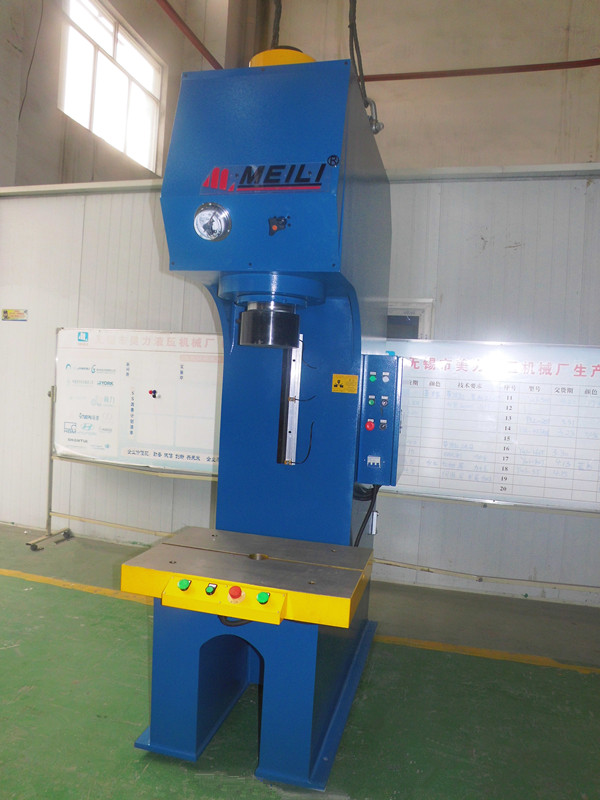

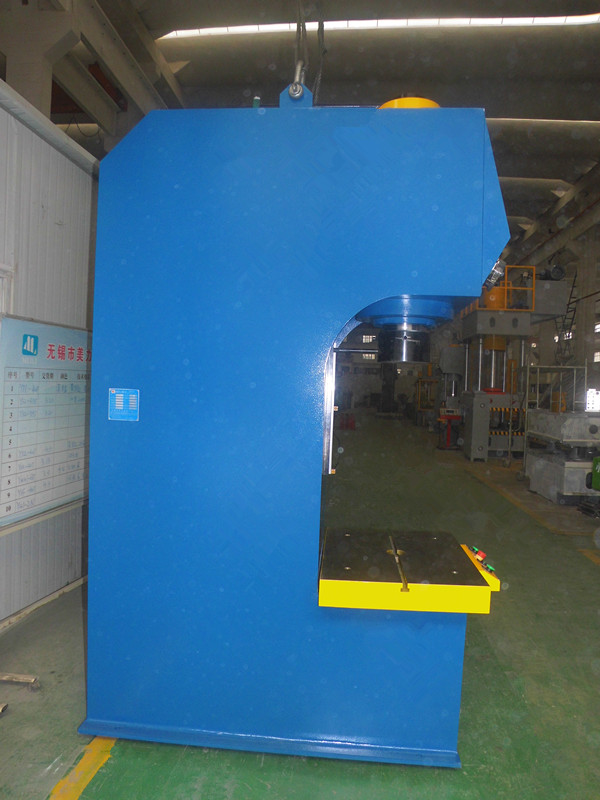

100T Floor Model C Frame Hydraulic Press Machine​.

C-Frame presses are very easy to install, use and maintain, as well as being very efficient at the high speed processing of metal sheets and other materials. We can also custom build high speed C-Frame presses designed for large operating spaces that are suitable for both automatic operations and multi-press assembly lines. Whether you are looking for a highly specialized machine, or one that will perform at high speeds, we always deliver.

HYDRAULIC SYSTEM
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload.
The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.


ELECTRICAL CONTROL PANEL
The electric control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate any fault and replace components conveniently.

Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5
Overall size L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

1000KN 25Mpa Floor Model C Frame 100T Metalworking Hydraulic Press

1000KN 25Mpa Floor Model C Frame 100T Metalworking Hydraulic Press

1000KN 25Mpa Floor Model C Frame 100T Metalworking Hydraulic Press
